Handcrafted Wagon Gears by Weaver Wagons (formally Pioneer Equipment).
These gears were designed in 1986 and continually improved over the years. With time it has been proven to be one of the better gears available. Thus, the reason we used these gears on our wagons for 28 years prior to acquiring the gear business when Pioneer equipment sold out. Contact us if you have any questions or are ready to place an order.
9600 - 6 Ton Wagon Gear
The 9600 Wagon Gear is well suited for hauling heavy loads. From large people haulers to grain, hay, or produce, the serious farmer will appreciate the ruggedness of this gear. They come standard with a straight axle and no springs. Options available Include, 15 X 6" rims & tires or 28” steel wheels, rubber torsion axles, bolster springs, mechanical or hydraulic brakes, tractor tongue, combo tongue, raised steel tongue and spring lift, 42” steel doubletree and neckyoke. Sled Runners are also available to convert your wagon to a sleigh. We stock wood tongue hardware, but not complete wood tongues.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
• Channel reach eliminates rattle
• True tracking
• Rubber torsion axles

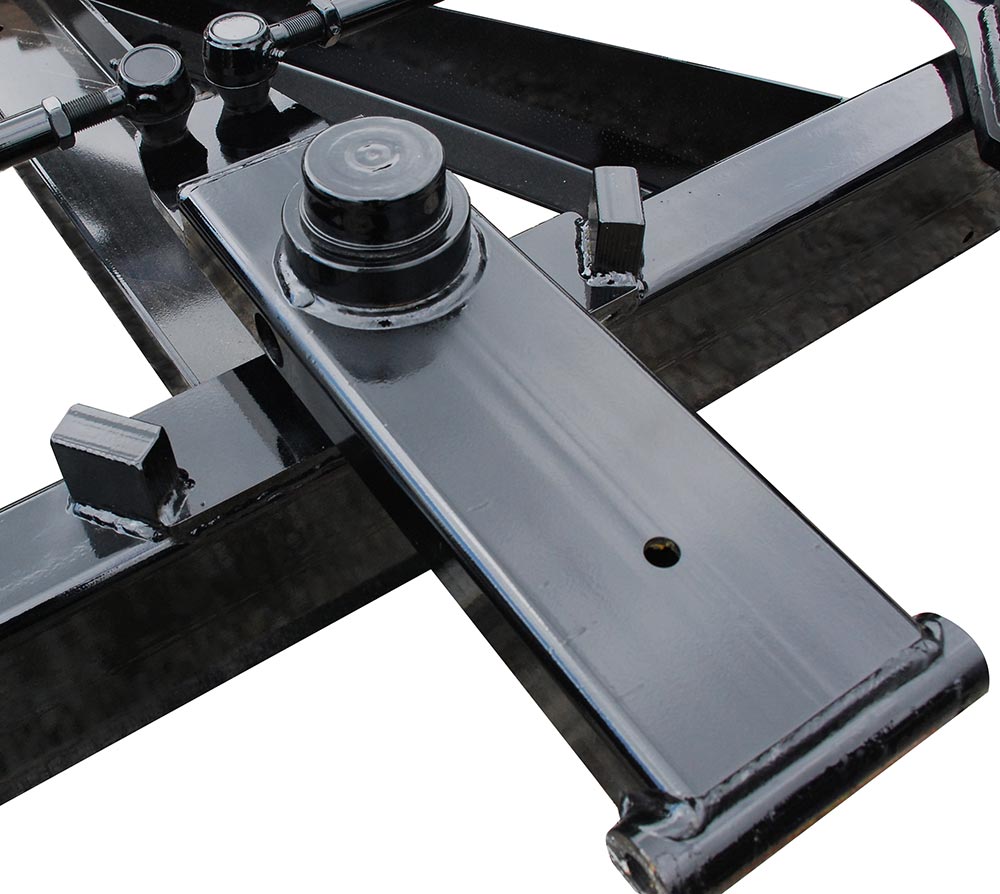

• Oversized heavy-duty spindles & hubs
• 3-part heavy duty seal for better protection
SPECIFICATIONS
• Overall Width outside of tires: 78”
• Overall Length: Adjustable with 7' or 9' coupling channel
• Beam standard width adjustable from 38" to 46"
• Weight: 735-900#

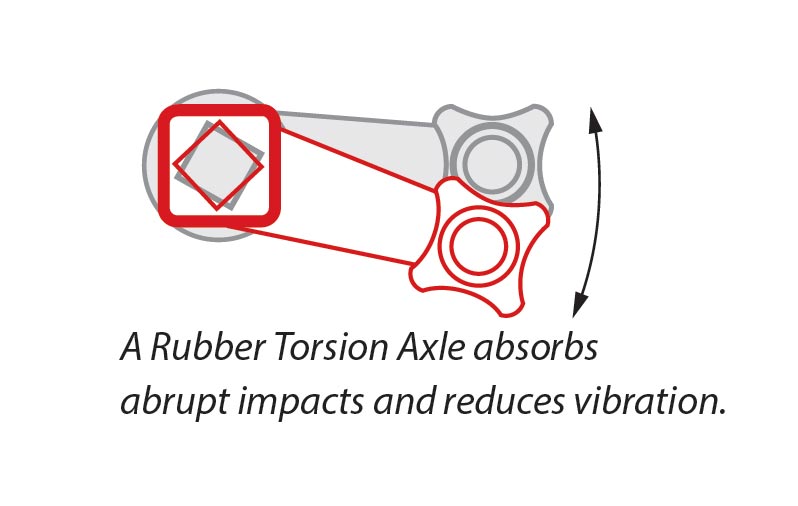

TORSION AXLE FEATURE
• 8,000lb. load capacity
• Softer ride than traditional bolster coil springs
• Less jar on hubs, bearings, and spindles
WAGON TONGUE OPTIONS
• We have tractor tongues, horse/tractor combination tongues and raised steel tongues.
Options
Accessories
Sled Runners
Sled Runners bolt directly to your wheel hubs, easily converting your wagon into a sled. Sled runners are not available for gears with wood wheels.
Additional Images
Videos

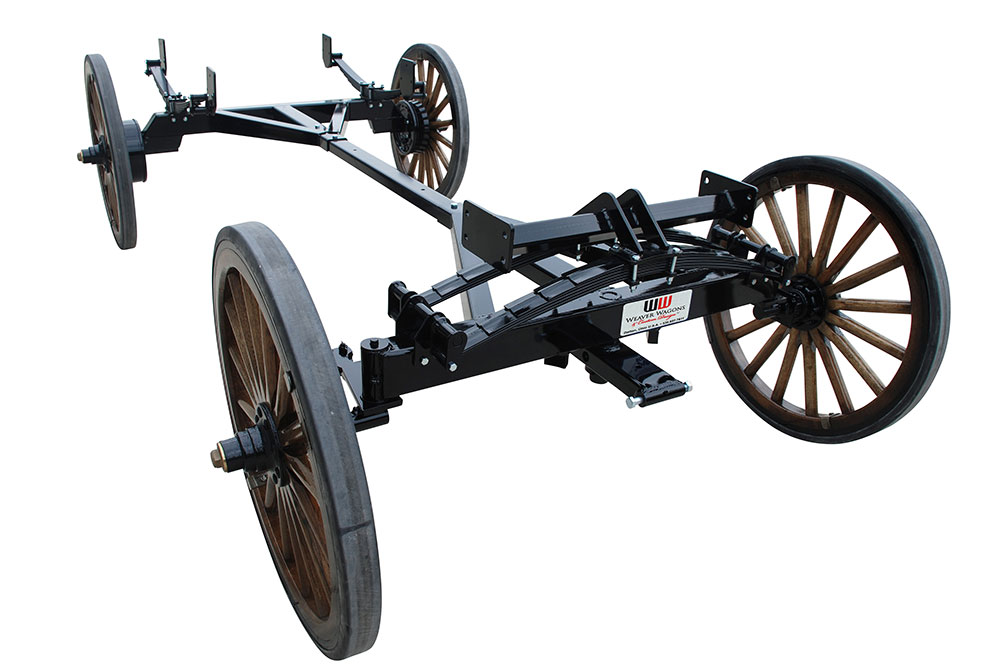

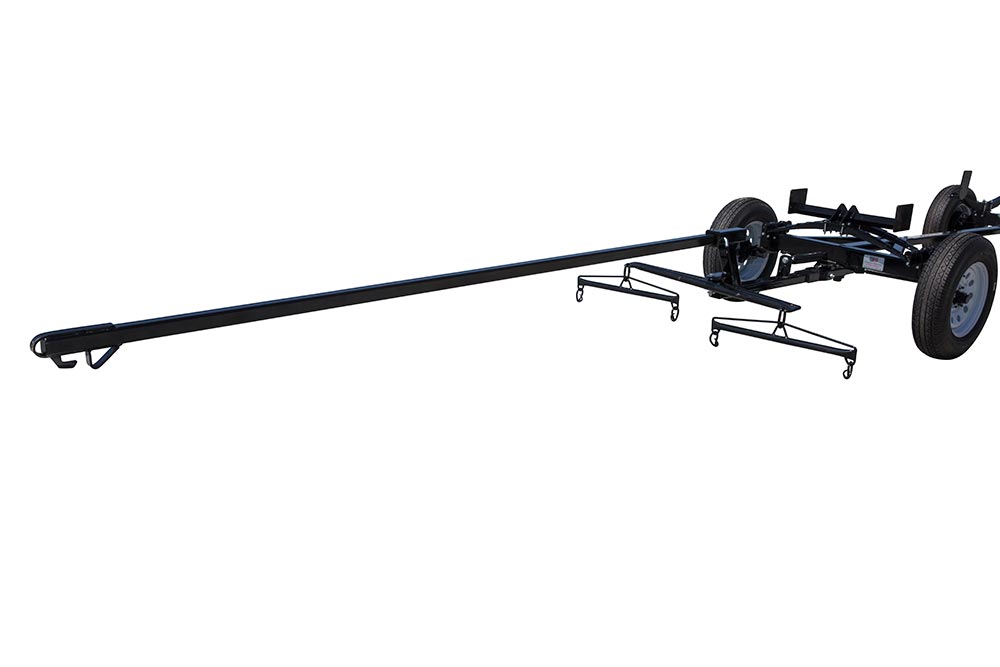

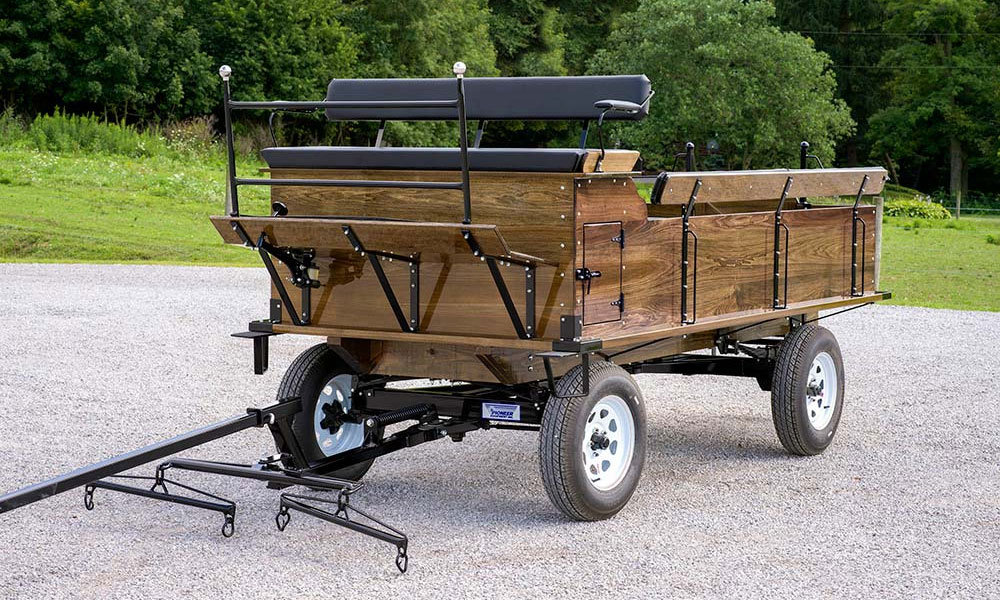

4700 - 3 Ton Wagon Gear
The 4700 Wagon Gear is designed especially for trails.
It has the ultimate suspension system that is perfect for pleasure driving and hayrides. The sharp turning radius makes it easy to maneuver in tight corners. Options available include, 15 X 5" rims & tires, wood wheels or 26” steel wheels, leaf springs, bolster springs, hydraulic brakes, tractor tongue, raised steel tongue & spring lift, 42” steel doubletree and neckyoke. Sled Runners are also available to convert your wagon to a sleigh. We stock wood tongue hardware, but not complete wood tongues.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
• Channel reach eliminates rattle
• Leaf springs suspension for maximum comfort
• Hydraulic brakes
• True tracking
SPECIFICATIONS
• Overall Width: 63”
• Overall Length axle to axle 78" to 110"
• Beam standard width 33.5"
• Weight: 500#
Options
Accessories
Additional Images
Videos

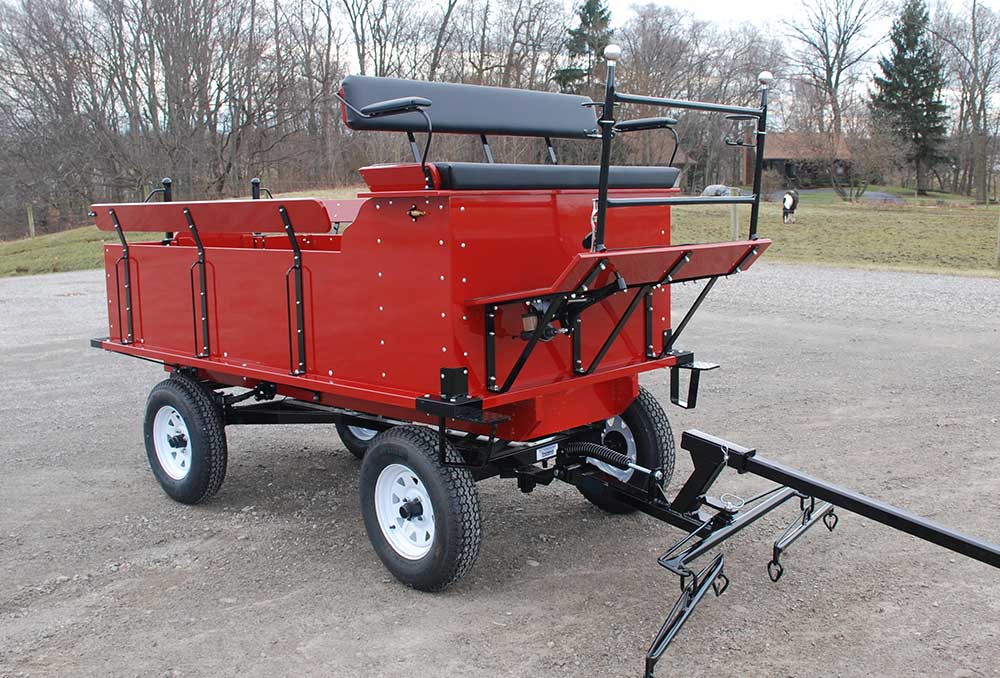

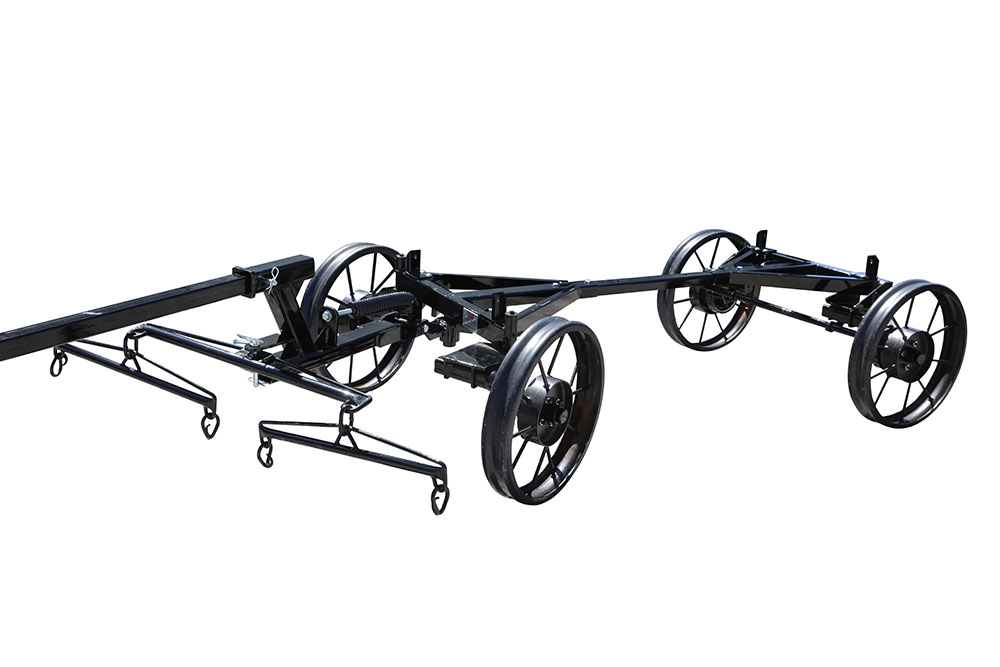

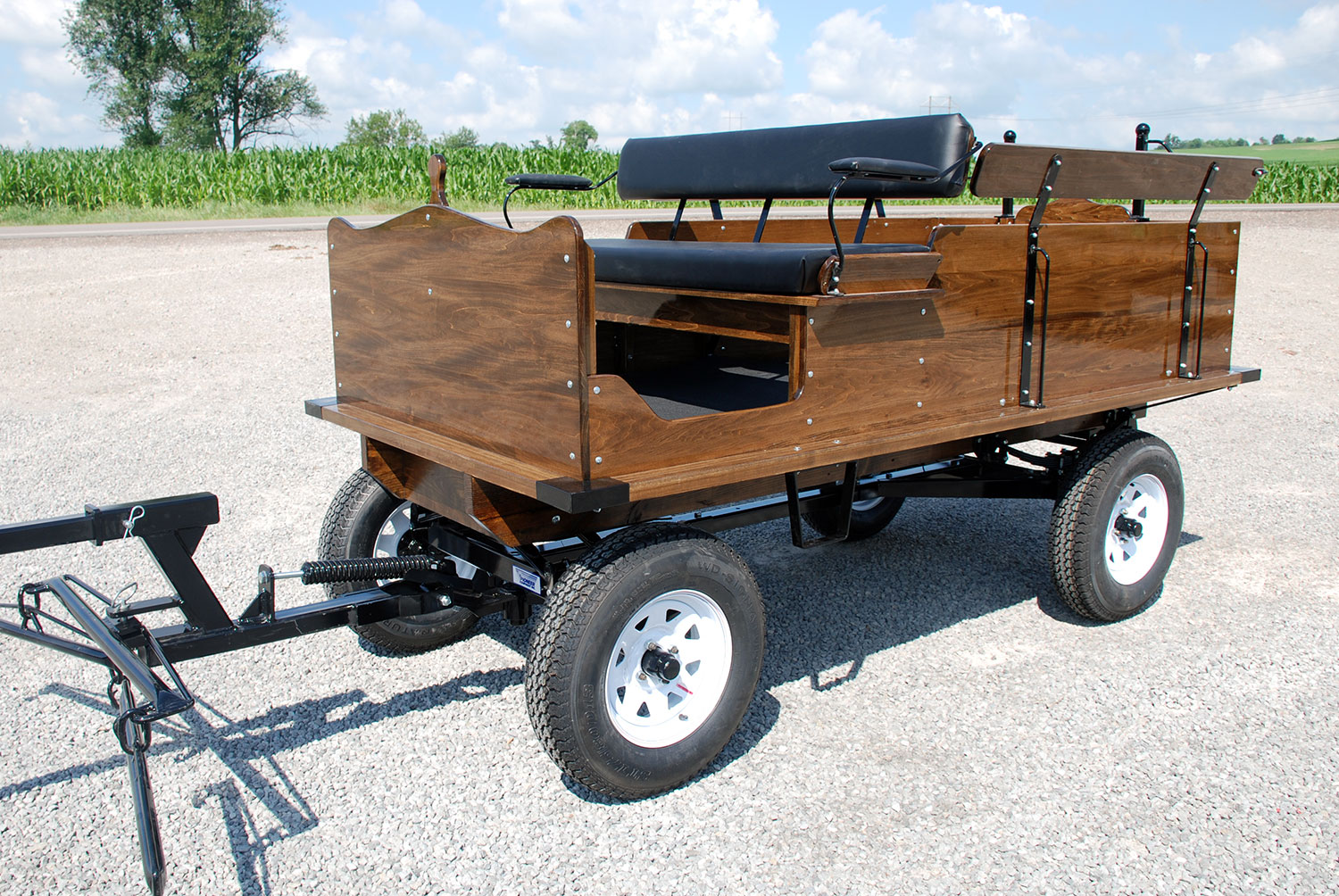

3800 - 1 Ton Wagon Gear
The 3800 Wagon Gear is a great multi-purpose gear for farmers and homesteaders.
Options include 13” rims & tires, wood wheels, or 20” or 24” steel wheels, rubber torsion axle, leaf springs, bolster springs, mech. or hyd. brakes, tractor tongue, steel shafts, raised steel tongue with spring lift, 38” steel doubletree & neckyoke. Sled Runners are also available to convert your wagon to a sleigh. We stock wood tongue hardware, but not complete wood tongues.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
• Channel reach eliminates rattle
• Ball joint tie rods to eliminate rattle and true tracking
• Rubber torsion axles
• Leaf spring suspension
• True tracking
SPECIFICATIONS
• Overall Width: 51”
• Overall Length axle to axle = 66" to 96"
• Beam standard width = 24.25"
• Weight: 310-410#
TORSION AXLE FEATURE
• 1,500lb. load capacity
• Softer ride than traditional bolster coil springs
• Less jar on hubs, bearings, and spindles
Options
Accessories
Additional Images
